Hadoop完全分布式模式安裝步驟

Hadoop模式介紹

單機模式：安裝簡單，幾乎不用作任何配置，但僅限于調試用途

偽分布模式：在單節點上同時啟動namenode、datanode、jobtracker、tasktracker、secondary namenode等5個進程，模擬分布式運行的各個節點

完全分布式模式：正常的Hadoop集群，由多個各司其職的節點構成

安裝環境

操作平臺：vmware2

操作系統：oracle linux 5.6

軟件版本：hadoop-0.22.0,jdk-6u18

集群架構：3 node，master node(gc),slave node(rac1,rac2)

安裝步驟

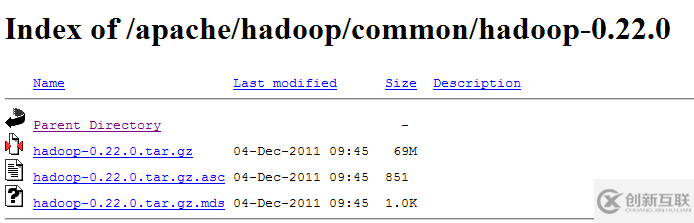

1.        下載Hadoop和jdk：

如：hadoop-0.22.0

2.        配置hosts文件

所有的節點（gc,rac1,rac2）都修改/etc/hosts，使彼此之間都能把主機名解析為ip

[root@gc ~]$ cat /etc/hosts

# Do not remove the following line, or various programs

# that require network functionality will fail.

127.0.0.1               localhost.localdomain localhost

::1             localhost6.localdomain6 localhost6

192.168.2.101           rac1.localdomain rac1

192.168.2.102           rac2.localdomain rac2

192.168.2.100           gc.localdomain gc

3.        建立hadoop運行賬號

在所有的節點創建hadoop運行賬號

[root@gc ~]# groupadd hadoop

[root@gc ~]# useradd -g hadoop grid --注意此處一定要指定分組，不然可能會不能建立互信

[root@gc ~]# id grid

uid=501(grid) gid=54326(hadoop) groups=54326(hadoop)

[root@gc ~]# passwd grid

Changing password for user grid.

New UNIX password:

BAD PASSWORD: it is too short

Retype new UNIX password:

passwd: all authentication tokens updated successfully.

4.        配置ssh免密碼連入

注意要以hadoop用戶登錄，在hadoop用戶的主目錄下進行操作。

每個節點做下面相同的操作

[hadoop@gc ~]$ ssh-keygen -t rsa

Generating public/private rsa key pair.

Enter file in which to save the key (/home/hadoop/.ssh/id_rsa):

Created directory '/home/hadoop/.ssh'.

Enter passphrase (empty for no passphrase):

Enter same passphrase again:

Your identification has been saved in /home/hadoop/.ssh/id_rsa.

Your public key has been saved in /home/hadoop/.ssh/id_rsa.pub.

The key fingerprint is:

54:80:fd:77:6b:87:97:ce:0f:32:34:43:d1:d2:c2:0d hadoop@gc.localdomain

[hadoop@gc ~]$ cd .ssh

[hadoop@gc .ssh]$ ls

id_rsa  id_rsa.pub

把各個節點的authorized_keys的內容互相拷貝加入到對方的此文件中，然后就可以免密碼彼此ssh連入。

在其中一節點節點就可完成操作

[hadoop@gc .ssh]$ cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

[hadoop@gc .ssh]$ ssh rac1 cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

The authenticity of host 'rac1 (192.168.2.101)' can't be established.

RSA key fingerprint is 19:48:e0:0a:37:e1:2a:d5:ba:c8:7e:1b:37:c6:2f:0e.

Are you sure you want to continue connecting (yes/no)  yes

Warning: Permanently added 'rac1,192.168.2.101' (RSA) to the list of known hosts.

hadoop@rac1's password:

[hadoop@gc .ssh]$ ssh rac2 cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

The authenticity of host 'rac2 (192.168.2.102)' can't be established.

RSA key fingerprint is 19:48:e0:0a:37:e1:2a:d5:ba:c8:7e:1b:37:c6:2f:0e.

Are you sure you want to continue connecting (yes/no)  yes

Warning: Permanently added 'rac2,192.168.2.102' (RSA) to the list of known hosts.

hadoop@rac2's password:

[hadoop@gc .ssh]$ scp ~/.ssh/authorized_keys rac1:~/.ssh/authorized_keys

hadoop@rac1's password:

authorized_keys                                                                                                            100% 1213     1.2KB/s   00:00

[hadoop@gc .ssh]$ scp ~/.ssh/authorized_keys rac2:~/.ssh/authorized_keys

hadoop@rac2's password:

authorized_keys                                                                                                            100% 1213     1.2KB/s   00:00

[hadoop@gc .ssh]$ ll

總計 16

-rw-rw-r-- 1 hadoop hadoop 1213 10-30 09:18 authorized_keys

-rw------- 1 hadoop hadoop 1675 10-30 09:05 id_rsa

-rw-r--r-- 1 hadoop hadoop  403 10-30 09:05 id_rsa.pub

--分別測試連接

[grid@gc .ssh]$ ssh rac1 date

2012年 11月 18日星期日 01:35:39 CST

[grid@gc .ssh]$ ssh rac2 date

2012年 10月 30日星期二 09:52:46 CST

--可以看到這步和配置oracle RAC中使用 SSH 建立用戶等效性步驟是一樣的。

5.        解壓hadoop安裝包

--可先一某節點解壓配置文件

[grid@gc ~]$ ll

總計 43580

-rw-r--r-- 1 grid hadoop 44575568 2012-11-19 hadoop-0.20.2.tar.gz

[grid@gc ~]$ tar xzvf /home/grid/hadoop-0.20.2.tar.gz

[grid@gc ~]$ ll

總計 43584

drwxr-xr-x 12 grid hadoop     4096 2010-02-19 hadoop-0.20.2

-rw-r--r--  1 grid hadoop 44575568 2012-11-19 hadoop-0.20.2.tar.gz

--在各節點安裝jdk

[root@gc ~]# ./jdk-6u18-linux-x64-rpm.bin

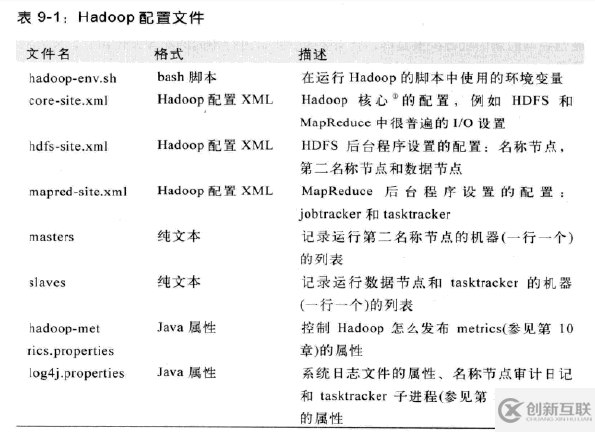

6.         Hadoop配置有關文件

n       配置hadoop-env.sh

[root@gc conf]# pwd

/root/hadoop-0.20.2/conf

--修改jdk安裝路徑

[root@gc conf]vi hadoop-env.sh

export JAVA_HOME=/usr/java/jdk1.6.0_18

n       配置namenode，修改site文件

--修改core-site.xml文件

[gird@gc conf]# vi core-site.xml

< xml version="1.0" >

< xml-stylesheet type="text/xsl" href="configuration.xsl" >

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>fs.default.name</name>

<value>hdfs://192.168.2.100:9000</value> --注意完全分布模式此地一定要用IP，下同

</property>

</configuration>

注：fs.default.name NameNode的IP地址和端口

--修改hdfs-site.xml文件

[gird@gc conf]# vi hdfs-site.xml

< xml version="1.0" >

< xml-stylesheet type="text/xsl" href="configuration.xsl" >

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>dfs.data.dir</name>

<value>/home/grid/hadoop-0.20.2/data</value> --注意此目錄必需已經創建并能讀寫

</property>

<property>

<name>dfs.replication</name>

<value>2</value>

</property>

</configuration>

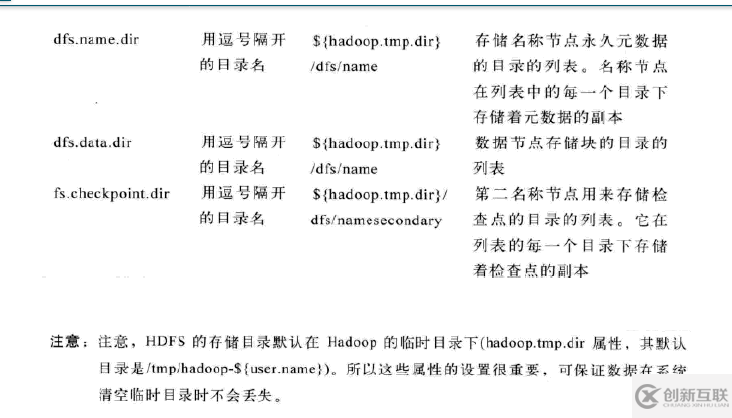

hdfs-site.xml文件中常用配置參數：

--修改mapred-site.xml文件

[gird@gc conf]# vi mapred-site.xml

< xml version="1.0" >

< xml-stylesheet type="text/xsl" href="configuration.xsl" >

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>mapred.job.tracker</name>

<value>192.168.2.100:9001</value>

</property>

</configuration>

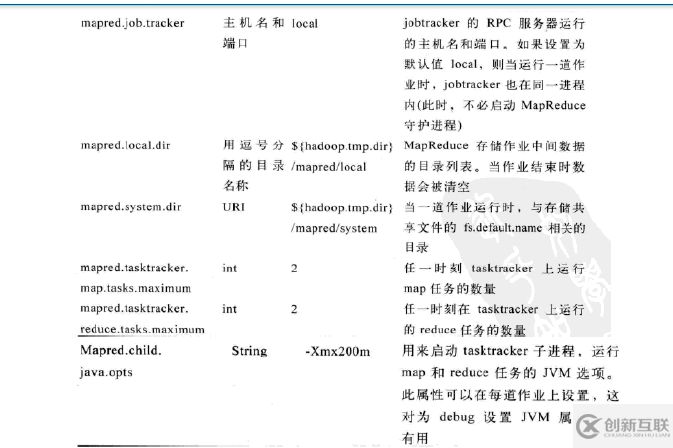

mapred-site.xml文件中常用配置參數

n       配置masters和slaves文件

[grid@gc conf]$ vi masters

gc

[grid@gc conf]$ vi slaves

rac1

rac2

n       向各節點復制hadoop

--把gc主機上面hadoop配置好文件分別copy到各節點

--注意：復制到其它的節點后配置文件中要修改為此節點的IP

[grid@gc conf]$ scp -r hadoop-0.20.2 rac1:/home/grid/

[grid@gc conf]$ scp -r hadoop-0.20.2 rac2:/home/grid/

7.         格式化namenode

--分別在各節點進行格式化

[grid@rac2 bin]$ pwd

/home/grid/hadoop-0.20.2/bin

[grid@gc bin]$ ./hadoop namenode –format

12/10/31 08:03:31 INFO namenode.NameNode: STARTUP_MSG:

/************************************************************

STARTUP_MSG: Starting NameNode

STARTUP_MSG:   host = gc.localdomain/192.168.2.100

STARTUP_MSG:   args = [-format]

STARTUP_MSG:   version = 0.20.2

STARTUP_MSG:   build = ; compiled by 'chrisdo' on Fri Feb 19 08:07:34 UTC 2010

************************************************************/

12/10/31 08:03:31 INFO namenode.FSNamesystem: fsOwner=grid,hadoop

12/10/31 08:03:31 INFO namenode.FSNamesystem: supergroup=supergroup

12/10/31 08:03:31 INFO namenode.FSNamesystem: isPermissionEnabled=true

12/10/31 08:03:32 INFO common.Storage: Image file of size 94 saved in 0 seconds.

12/10/31 08:03:32 INFO common.Storage: Storage directory /tmp/hadoop-grid/dfs/name has been successfully formatted.

12/10/31 08:03:32 INFO namenode.NameNode: SHUTDOWN_MSG:

/************************************************************

SHUTDOWN_MSG: Shutting down NameNode at gc.localdomain/192.168.2.100

************************************************************/

8.         啟動hadoop

--在master節點啟動hadoop守護進程

[grid@gc bin]$ pwd

/home/grid/hadoop-0.20.2/bin

[grid@gc bin]$ ./start-all.sh

starting namenode, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-namenode-gc.localdomain.out

rac2: starting datanode, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-datanode-rac2.localdomain.out

rac1: starting datanode, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-datanode-rac1.localdomain.out

The authenticity of host 'gc (192.168.2.100)' can't be established.

RSA key fingerprint is 8e:47:42:44:bd:e2:28:64:10:40:8e:b5:72:f9:6c:82.

Are you sure you want to continue connecting (yes/no)  yes

gc: Warning: Permanently added 'gc,192.168.2.100' (RSA) to the list of known hosts.

gc: starting secondarynamenode, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-secondarynamenode-gc.localdomain.out

starting jobtracker, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-jobtracker-gc.localdomain.out

rac2: starting tasktracker, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-tasktracker-rac2.localdomain.out

rac1: starting tasktracker, logging to /home/grid/hadoop-0.20.2/bin/../logs/hadoop-grid-tasktracker-rac1.localdomain.out

9.        用jps檢驗各后臺進程是否成功啟動

--在master節點查看后臺進程

[grid@gc bin]$ /usr/java/jdk1.6.0_18/bin/jps

27462 NameNode

29012 Jps

27672 JobTracker

27607 SecondaryNameNode

--在slave節點查看后臺進程

[grid@rac1 conf]$ /usr/java/jdk1.6.0_18/bin/jps

16722 Jps

16672 TaskTracker

16577 DataNode

[grid@rac2 conf]$ /usr/java/jdk1.6.0_18/bin/jps

31451 DataNode

31547 TaskTracker

31608 Jps

10.     安裝過程中遇到的問題

1)        Ssh不能建立互信

建用戶時不指定分組，Ssh不能建立互信，如下的步驟

[root@gc ~]# useradd grid

[root@gc ~]# passwd grid

解決：

創建新的用戶組，創建用戶時并指定此用戶組。

[root@gc ~]# groupadd hadoop

[root@gc ~]# useradd -g hadoop grid

[root@gc ~]# id grid

uid=501(grid) gid=54326(hadoop) groups=54326(hadoop)

[root@gc ~]# passwd grid

2)        啟動hadoop后，slave節點沒有datanode進程

現象：

在master節點啟動hadoop后，master節點進程正常，但slave節點沒有datanode進程。

--Master節點正常

[grid@gc bin]$ /usr/java/jdk1.6.0_18/bin/jps
29843 Jps
29703 JobTracker
29634 SecondaryNameNode
29485 NameNode

--此時再在兩slave節點查看進程，發現還是沒有datanode進程
[grid@rac1 bin]$ /usr/java/jdk1.6.0_18/bin/jps
5528 Jps
3213 TaskTracker

[grid@rac2 bin]$ /usr/java/jdk1.6.0_18/bin/jps
30518 TaskTracker
30623 Jps

原因：

--回頭查看在master節點啟動hadoop時的輸出日志，在slave節點找到啟動datanode進程的日志

[grid@rac2 logs]$ pwd

/home/grid/hadoop-0.20.2/logs

[grid@rac1 logs]$ more hadoop-grid-datanode-rac1.localdomain.log

/************************************************************

STARTUP_MSG: Starting DataNode

STARTUP_MSG:   host = rac1.localdomain/192.168.2.101

STARTUP_MSG:   args = []

STARTUP_MSG:   version = 0.20.2

STARTUP_MSG:   build = ; compiled by 'chrisdo' on Fri Feb 19 08:07:34 UTC 2010

************************************************************/

2012-11-18 07:43:33,513 WARN org.apache.hadoop.hdfs.server.datanode.DataNode: Invalid directory in dfs.data.dir: can not create directory: /usr/hadoop-0.20.2/data

2012-11-18 07:43:33,513 ERROR org.apache.hadoop.hdfs.server.datanode.DataNode: All directories in dfs.data.dir are invalid.

2012-11-18 07:43:33,571 INFO org.apache.hadoop.hdfs.server.datanode.DataNode: SHUTDOWN_MSG:

/************************************************************

SHUTDOWN_MSG: Shutting down DataNode at rac1.localdomain/192.168.2.101

************************************************************/

--發現是hdfs-site.xml配置文件的目錄data目錄沒有創建

解決：

在各節點創建hdfs的data目錄，并修改hdfs-site.xml配置文件參數

[grid@gc ~]# mkdir -p /home/grid/hadoop-0.20.2/data

[grid@gc conf]# vi hdfs-site.xml

< xml version="1.0" >

< xml-stylesheet type="text/xsl" href="configuration.xsl" >

<!-- Put site-specific property overrides in this file. -->

<configuration>

<property>

<name>dfs.data.dir</name>

<value>/home/grid/hadoop-0.20.2/data</value> --注意此目錄必需已經創建并能讀寫

</property>

<property>

<name>dfs.replication</name>

<value>2</value>

</property>

</configuration>

--重新啟動hadoop，slave進程正常

[grid@gc bin]$ ./stop-all.sh

[grid@gc bin]$ ./start-all.sh

以上是“如何完全分布式安裝Hadoop”這篇文章的所有內容，感謝各位的閱讀！相信大家都有了一定的了解，希望分享的內容對大家有所幫助，如果還想學習更多知識，歡迎關注創新互聯行業資訊頻道！
