人性化生產各種規格高品質混凝土攪拌車，可整車銷售，可來車改裝，可滿足不同國內外客戶需求，選用國內的一汽、唐駿，福田，東風等及其國外品牌底盤。

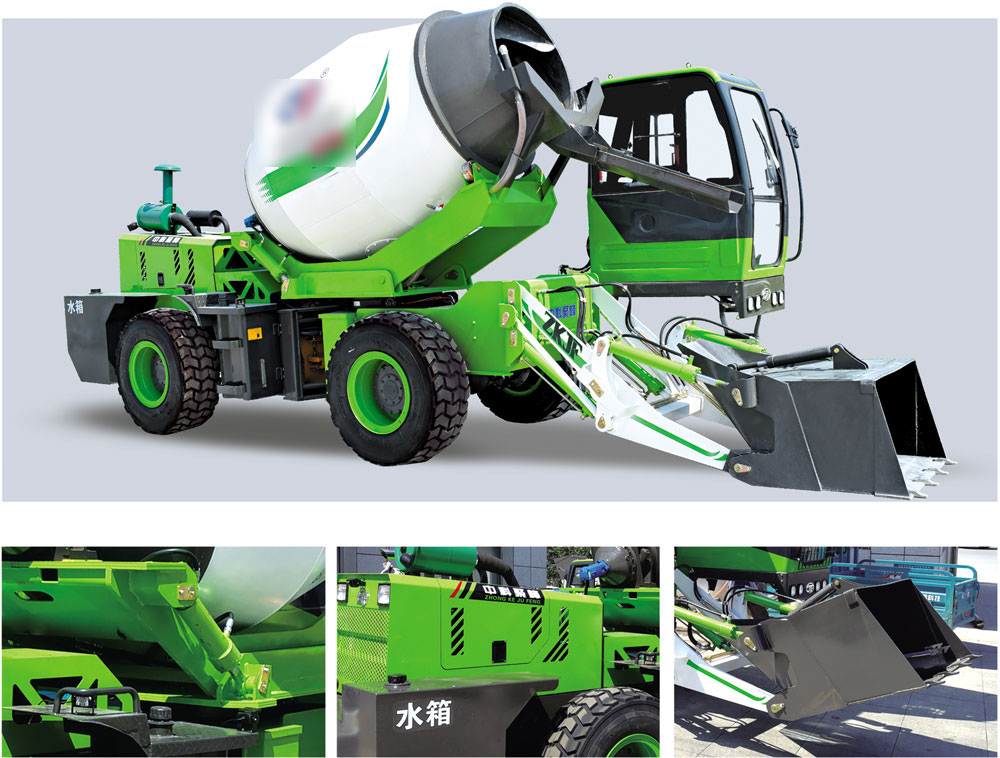

Humanized production of various specifications of high-quality concrete mixer truck, can be sold on the whole vehicle, can be refitted to meet the needs of different domestic and foreign customers, selection of domestic FAW, Tang Jun, Foton, Dongfeng and other foreign brand chassis.

主要性能特點：針對農村市場開發的專用底盤，寬度≤2300，狹窄的鄉村道路輕松應對；

Main performance features: special chassis for rural market development, width ≤ 2300, easy to cope with narrow rural roads;

低傾角設計：較同類攪拌車傾角低5%，安全系數高10%；進料口、出料口設計合理，進出料速度快，操作簡單；

Low inclination angle design: 5% lower than that of similar mixer truck, 10% higher safety factor; reasonable design of inlet and outlet, fast feeding speed and simple operation;

攪拌筒：所采用的攪拌筒形式是一種應用較為普遍的結構形式，攪拌葉片采用三維雙螺旋攪拌設計殘余率低至0.6%，優于國際標準2%，領先行業標準0.7%-1%。

Mixing drum: the mixing drum used is a common structural form. The mixing blade is designed by three-dimensional double screw mixing. The residual rate is as low as 0.6%, 2% better than the international standard, and 0.7% - 1% of the leading industry standard.

傳動系統：拌筒的驅動方式為以發動機為動力源，由發動機后端的取力器取力，通過傳動軸傳遞到液壓泵，經馬達減速機帶動攪拌筒轉動；

Transmission system: the driving mode of the mixing drum is the engine as the power source, and the power is taken by the power take-off at the rear end of the engine, which is transmitted to the hydraulic pump through the transmission shaft, and the mixing drum is driven to rotate by the motor reducer;

操縱系統：操縱系統通過汽車尾部的左右兩個操縱桿來控制攪拌筒的正、反轉和轉速，從而來完成進出料以及攪拌動作；

Control system: the control system controls the forward, reverse and rotation speed of the mixing drum through the left and right control levers at the rear of the car, so as to complete the feeding and mixing actions;

供水系統：混凝土攪拌車的供水系統主要用來清洗攪拌罐及其外表，供水系統主要是壓力水罐供水，水壓可達壓力0.6-0.8Mpa。

Water supply system: the water supply system of the concrete mixer truck is mainly used to clean the mixing tank and its surface. The water supply system is mainly supplied by pressure water tank, and the water pressure can reach 0.6-0.8mpa.

攪拌車特點：

Features of mixer truck:

一、可根據用戶需求采用先進閉式液壓系統或穩定國產系統；

1、 Advanced closed hydraulic system or stable domestic system can be adopted according to user's demand;

二、攪拌筒大容量設計，具有較大的裝料空間和攪拌空間；

2、 The mixing drum is designed with large capacity, with large space for loading and mixing;

三、攪拌筒采用耐磨鋼板制成，同時采用自動焊接，防銹處理，雙層漆等工藝，有效延長使用壽命；

3、 The mixing drum is made of wear-resistant steel plate, and automatic welding, anti rust treatment, double-layer paint and other processes are adopted to effectively prolong the service life;

四、攪拌筒采用大型工裝組裝，保證其同心度，使攪拌筒驅動系統使用壽命更長；

4、 The mixing drum is assembled with large tooling to ensure its concentricity and prolong the service life of the mixing drum drive system;

五、重心較低，整車在行駛時穩定性更好；
